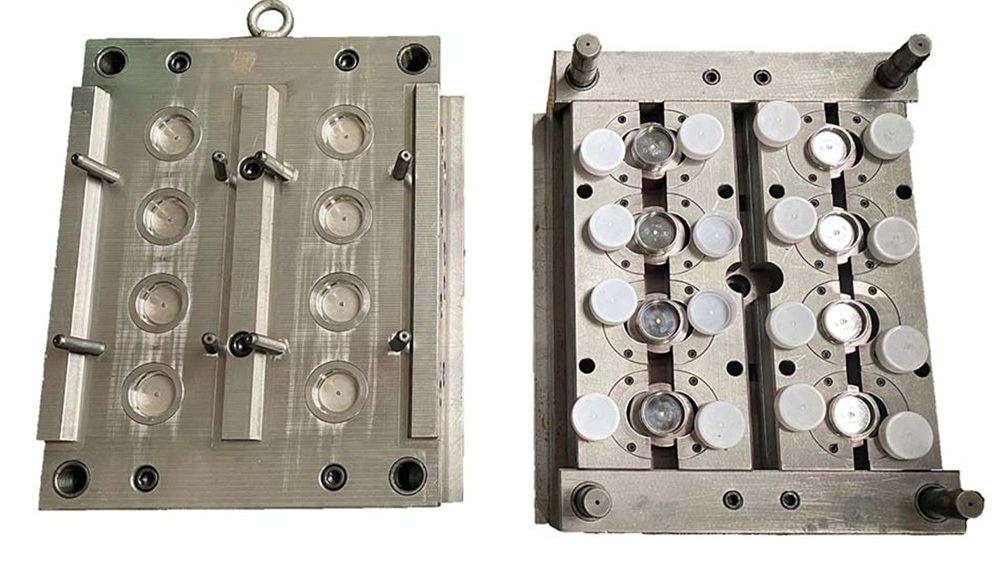

In high-volume packaging production, every second of cycle time and every minute of unplanned downtime directly impacts your bottom line. Many molds promise speed, but few deliver it consistently without frequent maintenance interruptions. APEX engineered its high-speed bottle cap molds to solve exactly this problem: sustained high-cycle performance with minimal maintenance demands, shift after shift, year after year.

Engineered for Continuous High-Speed Operation

APEX high-speed bottle cap molds are designed from the ground up for modern, high-efficiency production environments. Unlike conventional molds that struggle with stability at elevated speeds, our molds maintain precise clamping force distribution, balanced melt flow, and rapid, uniform cooling even at cycle times below 3 seconds for standard water caps.

Key engineering features that enable high-speed stability include:

• Optimized hot runner systems with multi-zone temperature control, ensuring consistent filling across all cavities even at maximum injection speeds

• High-performance cooling circuits with conformal cooling channels near critical areas, reducing cooling time by 15–25% compared to standard designs

• Precision-guided ejection systems that operate smoothly at high cycling rates, eliminating cap deformation or sticking

• Balanced stack design that minimizes deflection under high clamping forces, preserving part quality over millions of cycles

The result is a high-speed bottle cap mold that delivers reliable, repeatable output at the upper end of your machine's capability, not just during trials but throughout long production runs.

Low-Maintenance Cap Molds: Built for Maximum Uptime

Maintenance is often the hidden cost of high-speed molding. Frequent lubrication, component replacement, and unscheduled stops can erase the gains from faster cycles. APEX low-maintenance cap molds address this through purposeful material selection and design philosophy.

Every wear-critical component in an APEX cap mold is manufactured from premium tool steels such as H13, D2, or stainless variants, often with specialized coatings including TiN, CrN, or DLC (diamond-like carbon). These materials dramatically reduce friction and wear, extending component life by 2–3 times compared to industry standard alloys.

Beyond materials, our low-maintenance design incorporates:

• Hardened stripper plates with integrated wear pads, eliminating metal-to-metal contact and reducing lubrication frequency

• Quick-change core and cavity inserts that allow replacement of individual cavities without disassembling the entire mold – typically completed in under 20 minutes

• Self-lubricating bushings and guided components that operate reliably for millions of cycles without manual greasing

• Modular spare part kits with pre-matched components, reducing repair lead times and ensuring correct fit

For production managers tracking OEE (Overall Equipment Effectiveness), switching to APEX low-maintenance cap molds typically reduces scheduled maintenance time by 30–50% and virtually eliminates unscheduled downtime related to mold wear.

Comprehensive Cap Mold Portfolio

APEX provides complete tooling solutions across all major cap production technologies and closure types. Each mold family inherits our core design principles of high-speed stability and low maintenance, while incorporating technology-specific optimizations.

Compression Cap Molds
Our compression cap molds are designed for HDPE and PP caps produced on continuous compression molding machines. Features include flash-free edge design, uniform wall distribution, and extended compression pad life. Compared to injection molding, compression with APEX molds offers 10–15% lower energy consumption per cap and simpler maintenance due to fewer moving parts.

Injection Cap Molds
For complex cap geometries, multi-material designs, or applications requiring tighter dimensional tolerances, APEX injection cap molds deliver exceptional precision. Our injection molds support full hot runner systems, servo-electric ejection, and integration with IML (in-mold labeling) where required.

Flip-Top Cap Mold
The flip-top cap mold from APEX features integrated hinge pin design with optimized film hinge geometry. Our molds consistently achieve over 50,000 open-close cycles without hinge failure, validated through in-house testing. The hinge area is cooled independently to ensure consistent shrinkage and smooth operation.

Tamper-Evident Cap Mold
Safety and compliance depend on reliable tamper-evident band performance. APEX tamper-evident cap mold designs control bridge thickness to within ±0.02mm across all cavities, ensuring consistent breakaway torque and clean band separation without sharp edges.

Water Cap Mold and Beverage Cap Mold
APEX water cap mold solutions cover standard 28mm and 29mm closures for still water, while our beverage cap mold portfolio includes CSD (carbonated soft drink) caps with pressure-resistant designs, hot-fill caps for juice and tea, and aseptic caps for sensitive dairy or plant-based beverages.

High-Cavity Cap Molds for Industrial Scale

To serve large-volume producers, APEX offers high-cavity cap molds ranging from 32 to 96 cavities. A typical 72-cavity APEX water cap mold running at a 2.8-second cycle produces over 92,000 caps per hour. With our low-maintenance design, scheduled service intervals extend beyond 2 million cycles, compared to typical 500,000–1,000,000 cycles for conventional high-cavity molds.

All high-cavity cap molds include validated hot runner balancing reports, thermal imaging verification, and first-article inspection data for every cavity before shipment.

Proven Performance Across Global Production Lines

APEX molds are not laboratory prototypes – they are production-proven tools running daily on major bottling lines worldwide. Current customer data across our installed base shows:

• Average scrap rate below 0.8% for water caps, and below 1.5% for complex flip-top or tamper-evident designs

• Mold life exceeding 15 million cycles before major refurbishment, with many tools still producing quality caps beyond 25 million cycles

• Maintenance labor reduction of 40% compared to previous mold suppliers, based on customer-reported maintenance logs

• Interchangeable component compatibility between APEX molds of same cap type, reducing spare part inventory complexity

Customers in Asia, the Middle East, Europe, and the Americas have validated these results across applications including still water, carbonated beverages, edible oils, fruit juices, dairy drinks, and personal care products.

Technical Support and Lifecycle Partnership

As a professional bottle cap mold manufacturer, APEX provides comprehensive support beyond the mold itself:

• Full documentation package including 2D and 3D drawings, hot runner manuals, spare part lists, and maintenance schedules

• Spare part stock recommendations based on your production volume, typically including wear plates, springs, ejector pins, and seals for critical cavities

• Remote diagnostic support via video or on-site visits for troubleshooting or process optimization

• Refurbishment services when your mold eventually reaches end of life, restoring it to original specifications at approximately 40–50% of new mold cost

Partner with APEX

If your packaging line demands sustained high-speed output with minimal downtime for maintenance, APEX high-speed bottle cap molds and low-maintenance cap molds are engineered to deliver. Whether you need compression cap molds, injection cap molds, a flip-top cap mold, tamper-evident cap mold, water cap mold, beverage cap mold, or high-cavity cap molds, APEX provides proven solutions tailored to your production targets.

Contact APEX today to discuss your cap design, cavity count, target cycle time, and maintenance expectations. Our engineering team will provide a mold proposal optimized for your specific production environment.
