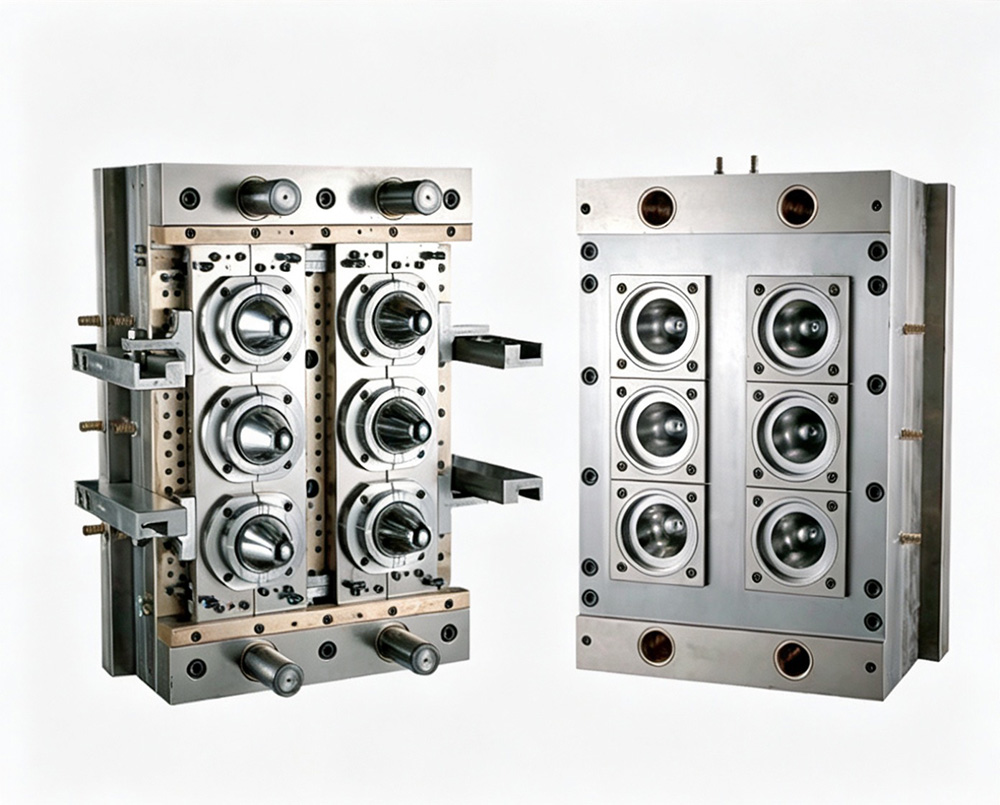

The Marriage of Precision and Longevity
In preform mold manufacturing, two qualities rarely coexist: the extreme precision measured in single-digit microns that produces flawless preforms, and the robust durability that sustains that precision across millions of production cycles without degradation. APEX has made these seemingly opposing characteristics inseparable, engineering preform molds where micron-level cavity accuracy and million-cycle performance are not competing priorities but complementary outcomes of the same uncompromising manufacturing philosophy.

What Micron-Level Precision Means in Practice
A micron measures one-thousandth of a millimeter, far smaller than the human eye can perceive, yet within a preform mold cavity, micron-level dimensional variations directly determine wall thickness uniformity, preform weight consistency, neck finish accuracy, and ultimately the blowing performance and final bottle quality that brands and consumers depend upon, making micron precision not an engineering luxury but a fundamental production necessity for any manufacturer supplying demanding global packaging markets.

Achieving Micron Accuracy Through Advanced Machining
APEX creates micron-level cavities through multi-axis high-speed CNC machining centers operating in temperature-controlled environments, followed by precision EDM wire cutting for intricate geometric details, and completed with controlled diamond polishing processes that achieve SPI A1 surface finishes while maintaining dimensional integrity, with every machining step verified through coordinate measuring machine inspection that confirms feature accuracy against design specifications at micron resolution.

The Coordinate Measuring Machine as Precision Guardian
APEX deploys coordinate measuring technology throughout the manufacturing process, not merely as a final inspection tool but as an integrated quality control system that verifies dimensional accuracy at every production milestone, generating measurement data that confirms cavity diameters within 0.01mm tolerance, core pin concentricity within specified limits, and neck finish geometry exactly matching customer requirements before mold assembly proceeds.

Micron Precision Across Every Cavity in the Array
In high-cavitation molds from 72 to 144 cavities, achieving micron precision in one cavity represents significant capability, but achieving it identically across every cavity demands manufacturing systems operating at the highest level of process control, and APEX delivers this through standardized machining programs, identical tooling setups, and individual cavity verification that ensures cavity dimensions match across the entire array within tolerance bands measured in microns.

The Transition from Micron Precision to Million-Cycle Durability
Micron-level accuracy at first production is essential but insufficient if that precision erodes over time, and APEX bridges the gap between initial precision and sustained performance through premium DIN 1.2316 and 1.2344 mold steels hardened to 48-52 HRC, wear-resistant surface treatments including TiN and CrN coatings where appropriate, and robust mold base construction that maintains alignment and dimensional stability through years of continuous high-cycle operation.

Dimensional Stability Verified Across Production Milestones
APEX documents dimensional stability across the million-cycle performance threshold through periodic measurement of operating molds at defined production milestones, with coordinate measuring machine verification at one million, three million, and five million cycle intervals confirming that cavity dimensions, core pin concentricity, and neck finish features remain within original tolerance specifications without progressive drift or localized wear patterns.

Surface Finish Retention Across Extended Production
Micron-level cavity precision includes surface finish quality that directly affects preform clarity and mold release characteristics, and APEX surface treatments combined with optimized processing parameters maintain SPI A1 polish quality across millions of cycles without developing micro-pitting, erosion patterns, or surface degradation that would compromise optical preform quality or increase demolding forces as production volumes accumulate.

Thermal Stability Protecting Dimensional Precision
Temperature fluctuations during production cycling cause thermal expansion and contraction measured in microns, and APEX manages these dimensional variations through conformal cooling designs maintaining uniform cavity temperatures, matched thermal expansion coefficient materials in critical components, and multi-zone temperature control that stabilizes thermal conditions, ensuring that micron-level precision is maintained not just at steady state but throughout cold starts, production transitions, and all thermal operating conditions.

Wear Component Management for Sustained Precision
Certain mold components experience inevitable wear over million-cycle timeframes, and APEX addresses this through hardened and coated wear surfaces on identified high-friction components, documented replacement intervals for consumable items including guide pins and ejector sleeves, and spare parts specifications that enable planned maintenance preserving overall cavity precision through timely component renewal before wear affects dimensional accuracy.

The Economic Value of Sustained Precision
Molds that maintain micron-level accuracy across million-cycle lifetimes deliver compelling economic value through consistent preform quality eliminating downstream blowing failures, reduced scrap rates from dimensional drift prevention, extended intervals between major refurbishment events, and reliable production output that supports predictable supply chain performance without the quality crises and emergency tooling repairs that disrupt operations and damage customer relationships.

Application-Specific Precision Requirements
Different preform applications impose different precision priorities, with lightweight water preforms demanding exceptional wall thickness uniformity, hot-fill preforms requiring precise thermal gate geometry for stress reduction, and carbonated beverage preforms needing exact neck finish dimensions for pressure retention, and APEX tailors micron-level precision specifications to match the specific performance requirements of each application category.

Validation Documentation Supporting Precision Claims
Every APEX preform mold ships with comprehensive dimensional documentation including individual cavity measurement reports, surface finish verification data, and baseline dimensional records that establish the precision foundation from which million-cycle performance will be measured, providing customers with verified evidence of accuracy at delivery and reference standards for ongoing performance monitoring throughout the mold's operational life.

The Engineering Discipline Behind Dual Capability
Delivering both micron-level cavities and million-cycle performance requires integrated engineering discipline spanning material selection, machining process control, thermal management design, surface treatment specification, and quality verification methodology, and APEX maintains this discipline across every preform mold produced, refusing to separate precision from durability or accuracy from longevity in the pursuit of manufacturing shortcuts that would compromise either essential characteristic.

Partner with APEX for Precision That Endures
For preform manufacturers who recognize that initial accuracy without sustained performance represents incomplete value, and that durability without precision offers hollow longevity, APEX preform molds deliver the complete package: micron-level cavities that produce flawless preforms from the first cycle, and million-cycle performance that continues producing those same flawless preforms years after competitors' tooling has required major refurbishment or replacement.
