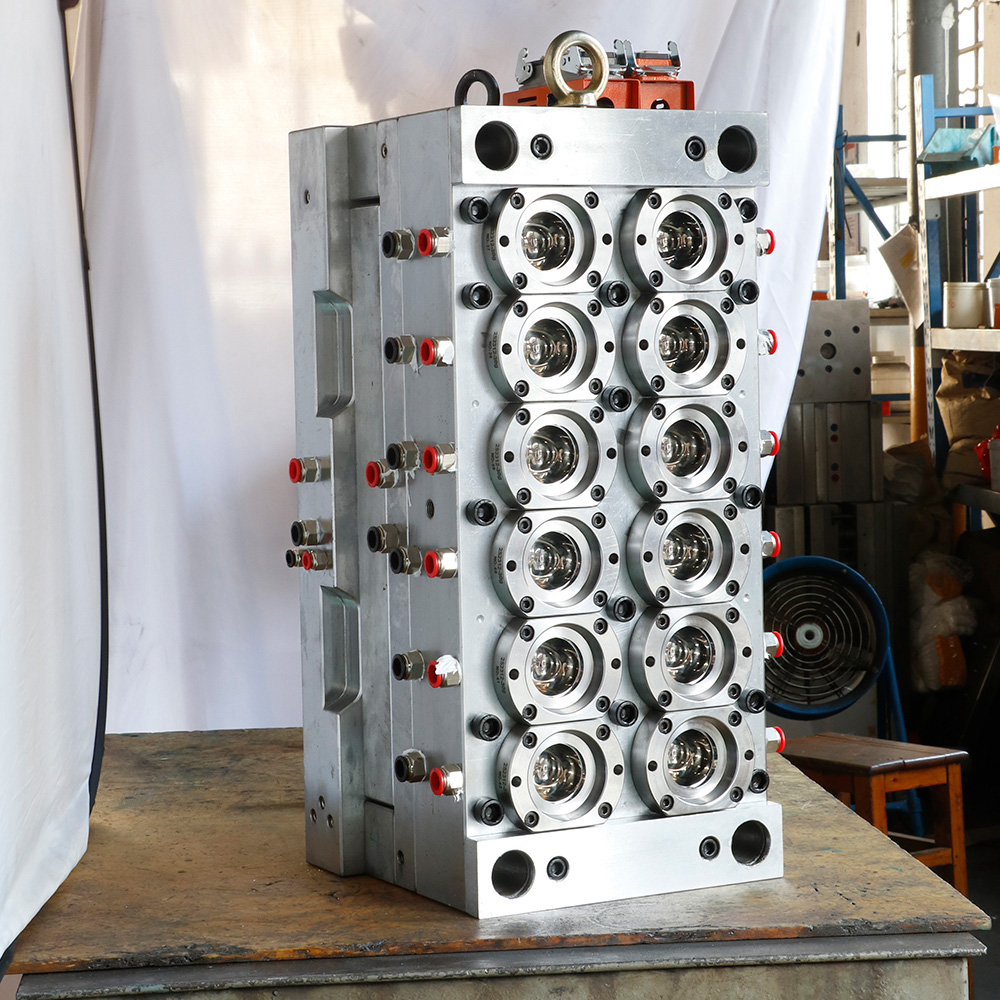

Case Study: How a Leading Bottler Doubled Output by Upgrading from 48-Cavity to 96-Cavity Preform Mold
In today’s fast-scaling beverage packaging sector, market growth often outpaces factory footprint expansion. Contract packaging converters and high-volume bottlers constantly face the strategic dilemma: build an entirely new production bay or maximize output within their existing floor plan. When a leading South American regional water and CSD bottler hit a severe capacity ceiling on their 500ml packaging line, they partnered with ApexMolds to re-engineer their production strategy.
By upgrading their legacy 48-cavity system to an ApexMolds high-precision 96-cavity valve-gate PET preform mold, the client doubled their hourly preform yield while significantly lowering unit operational costs. This technical case study analyzes the engineering, thermal balance, mechanical integration, and economic results of this successful tooling transformation.
1. The Challenge: Bottlenecks in Output and Soaring Unit Energy Costs
Prior to the retrofit, the client was operating a standard 48-cavity PET preform mold producing 18.5g 29/25 neck finish water bottle preforms. Rapid market expansion caused downstream blow molding lines to starve, forcing the client to outsource preforms at high premium margins.
Primary Operational Constraints:
- Floor Space Limitations: The plant floor could not accommodate an additional complete injection molding machine line.
- Thermal Instability: The older mold experienced core temperature variations across outer cavities, leading to high rejection rates (over 3.8%) due to preform gate tailing and wall eccentricity.
- High Specific Energy Consumption (SEC): Operating two separate lower-cavity lines for equivalent capacity would double labor and auxiliary chilling energy requirements.
2. The ApexMolds Engineering Solution: High-Density 96-Cavity Retrofit
To double production within the exact same factory footprint, ApexMolds developed a customized 96-cavity high-density mold engineered specifically for high-speed continuous production.
| Technical Metric | Legacy System (48-Cavity) | Upgraded ApexMolds System (96-Cavity) | Performance Gain |
|---|---|---|---|
| Mold Cavity Count | 48 Cavities | 96 Cavities (High Density) | +100% Capacity |
| Hourly Production Yield | ~16,200 PPH | ~34,500 PPH | +113% Hourly Output |
| Injection Cycle Time | 10.6 seconds | 10.0 seconds (Optimized Cooling) | 0.6s Reduction |
| Scrap / Defect Rate | 3.8% (Gate tailing & eccentricity) | < 0.4% (Precision valve gate) | 89.5% Scrap Reduction |
| Core/Cavity Steel Grade | Standard P20/H13 Tool Steel | Premium Swedish S136 Stainless Steel | Extended Tool Life (>5M Cycles) |
Key Technological Breakthroughs Integrated by ApexMolds:
- Balanced Hot Runner Valve-Gate System: To guarantee identical melt flow length and thermal distribution across all 96 cavities, ApexMolds integrated a multi-zone pneumatic valve-gate hot runner system. This eliminated gate tailing and kept Acetaldehyde (AA) levels minimal.
- Conformal Cooling Channels: By redesigning internal cooling circuits in the core and cavity inserts, heat extraction efficiency was increased by 30%, enabling a 10.0-second cycle time despite doubling cavity density.
- Precision Concentricity Alignment: ApexMolds' CNC machining tolerances guaranteed core-to-cavity concentricity within 0.03mm, securing exceptional preform wall thickness uniformity for downstream stretch blow molding.
3. Results & Financial Return on Investment (ROI)
The installation and commissioning of the ApexMolds 96-cavity PET preform mold delivered immediate operational improvements:
- Doubled Capacity: Daily preform output rose from 388,000 units to over 828,000 units without increasing factory square footage.
- 22% Energy Savings Per Unit: Consolidating production into a high-cavity, fast-cycle mold lowered the specific kilowatt-hour cost per thousand preforms produced.
- Full ROI in 14 Months: Through saved preform outsourcing costs, scrap reduction, and lower energy usage per unit, the total capital investment was fully amortized in just 14 months.
Conclusion: Partnering with ApexMolds for High-Cavity Success
Upgrading from a 48-cavity to a 96-cavity preform mold requires precise hot runner engineering, robust steel selection, and tailored cooling design. As demonstrated in this case study, ApexMolds delivers end-to-end high-cavity preform tooling solutions that optimize cycle times, maximize machine utilization, and accelerate return on investment.
Ready to double your PET preform line capacity or discuss high-cavity mold retrofits? Contact the technical team at ApexMolds today for custom engineering solutions.
