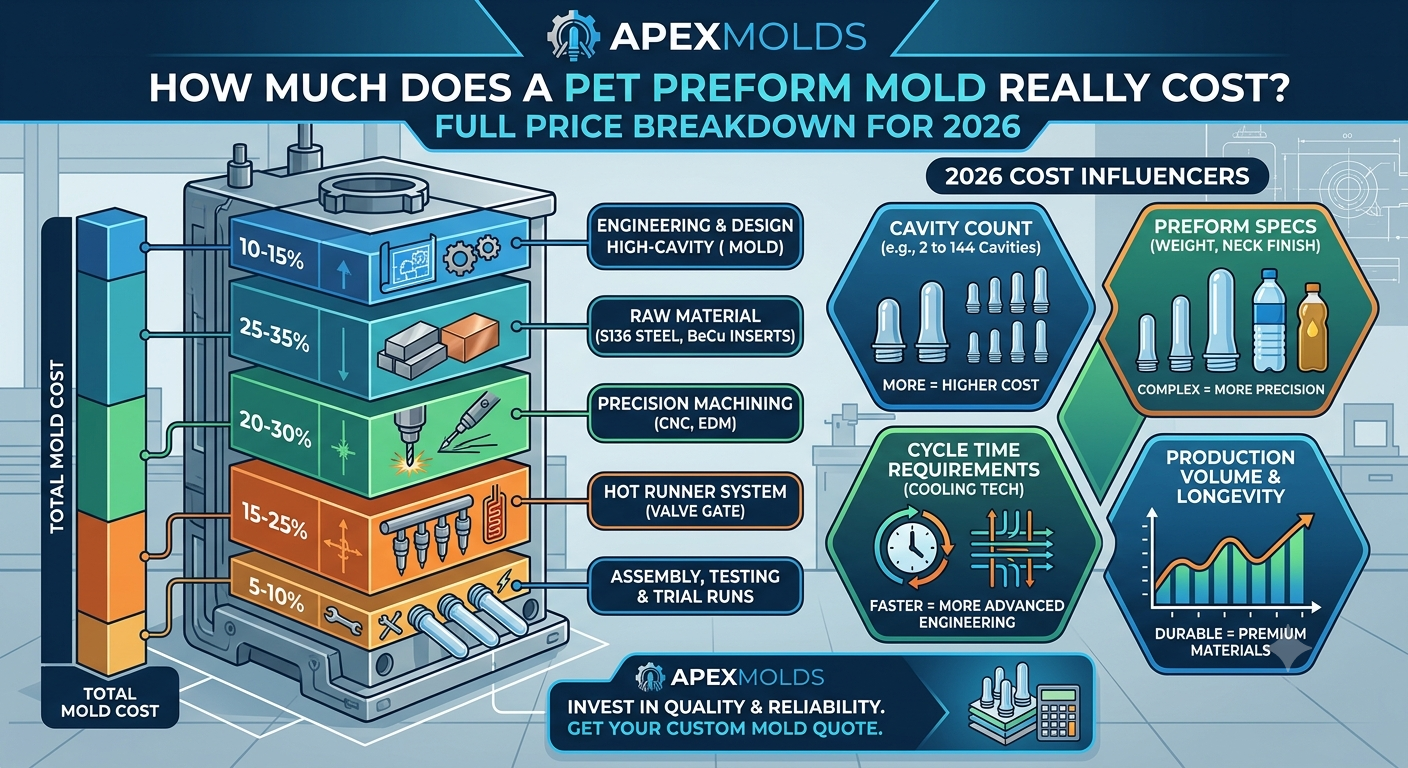

When planning to purchase a new injection line or expand existing PET preform manufacturing capacity, one of the first questions bottle manufacturers and packaging converters ask is: "How much does a PET preform mold cost?" However, asking for a generic price quote without analyzing technical specifications is like asking for the price of a vehicle without specifying whether it is a family sedan or a heavy-duty commercial truck.

In 2026, the price range for a professional PET preform mold spans widely—from $8,000 for small entry-level low-cavity molds to over $180,000 for high-cavity, ultra-high-speed valve gate systems. As a global leading PET preform mold manufacturer and solution specialist, Apexmolds breaks down every technical variable, hidden cost factor, and long-term economic metric that defines the true cost of a PET preform mold in 2026.

1. Estimated PET Preform Mold Price Ranges in 2026 (By Cavity Count)

While exact quotations depend on neck finish (e.g., PCO 1881, 29/25, 30/25, 38mm, 5-gallon), preform weight, and cycle speed requirements, the following table provides a realistic market price benchmark for industrial-grade PET preform molds in 2026:

2. Key Technical Drivers Shaping PET Preform Mold Costs

1) Steel Grade Selection & Heat Treatment

Steel accounts for a significant portion of raw material costs and dictates mold longevity. Low-cost molds often utilize standard P20 or 718 steel, which wears out rapidly under abrasive high-pressure PET injection. Apexmolds standardizes on imported Swiss S136 stainless steel (HRC 48–52) for core, cavity, and neck ring components, along with pre-hardened P20/4140 for the mold frame. While S136 increases initial material cost by 25–30%, it prevents rust, maintains mirror polish optical clarity, and provides a tooling lifespan exceeding 3 million to 5 million shots.

2) Hot Runner Technology: Self-Gated vs. Pneumatic Valve Gate

The hot runner system represents roughly 30% to 45% of the total mold cost:

• Thermal Gate / Self-Gated Systems: Lower initial cost, but can leave longer gate nubs, cause stringing, and increase acetaldehyde (AA) accumulation.
• Pneumatic Valve Gate Systems: Higher initial cost, but individual needle shut-off mechanisms deliver clean gate faces (nub height ≤ 0.2mm), uniform thermal balance, and zero gate drooling. Apexmolds incorporates high-precision valve gate hot runners with German-engineered heating elements to ensure thermal uniformity within ±1°C.

3) Cooling Channel Engineering & 3D Conformal Cooling

Cooling accounts for nearly 70% of the total injection cycle time. Standard straight-drilled cooling channels are cheap to machine but result in hot spots, leading to thermal stress and long cooling cycles (13–15s). Apexmolds integrates 3D conformal spiral cooling channels and Beryllium-Copper (BeCu) inserts in core tips and neck finish zones. This advanced engineering accelerates heat dissipation, trimming cycle times down to 9.5 to 11 seconds—increasing daily factory output by over 20%.

4) Structural Alignment & Precision Lock Mechanisms

To keep preform wall eccentricity within strictly tight limits (≤0.05mm), premium molds require double-taper or triple-taper self-locking structures. Cheap single-taper alignment leads to core shift during injection, resulting in uneven preform wall thickness, weak spots, and high bottle blow-molding burst rates.

3. The Hidden Cost Equations: Total Cost of Ownership (TCO)

To evaluate whether a mold is truly cost-effective, smart packaging operators use the Total Cost of Ownership formula:

Consider two 32-cavity mold scenarios running 24/7 over a 3-year period:

• Cheap Mold Option ($28,000): Runs at a 13.5-second cycle time with a 2.5% scrap rate due to eccentricity and gate stringing. Requires frequent shutdown for core replacement.
• Apexmolds Precision Tooling ($52,000): Runs at an 10.5-second cycle time with a 0.3% scrap rate. Operates continuously with minimal scheduled maintenance.

The 3.0-second faster cycle time from Apexmolds produces over 7 million additional preforms annually on the exact same injection molding machine. The energy savings and raw material scrap reduction offset the initial price difference within the first 6 to 8 months of operation.

4. How Apexmolds Delivers Superior Value for Global Beverage Bottlers

As a specialized PET preform mold manufacturer, Apexmolds combines state-of-the-art CNC machining precision, Swiss S136 steel metallurgy, and custom hot runner designs to maximize return on investment:

• Turnkey Solutions: Complete engineering support from preform weight light-weighting design and Mold Flow Analysis (MFA) to hot runner balancing and auxiliary machine matching.
• Modular Maintenance Design: Interchangeable core, cavity, and neck ring inserts allow quick, on-machine replacement without removing the heavy mold frame.
• Guaranteed Longevity: backed by rigorous factory trial testing and a long-service warranty on mold bases and hot runner components.
