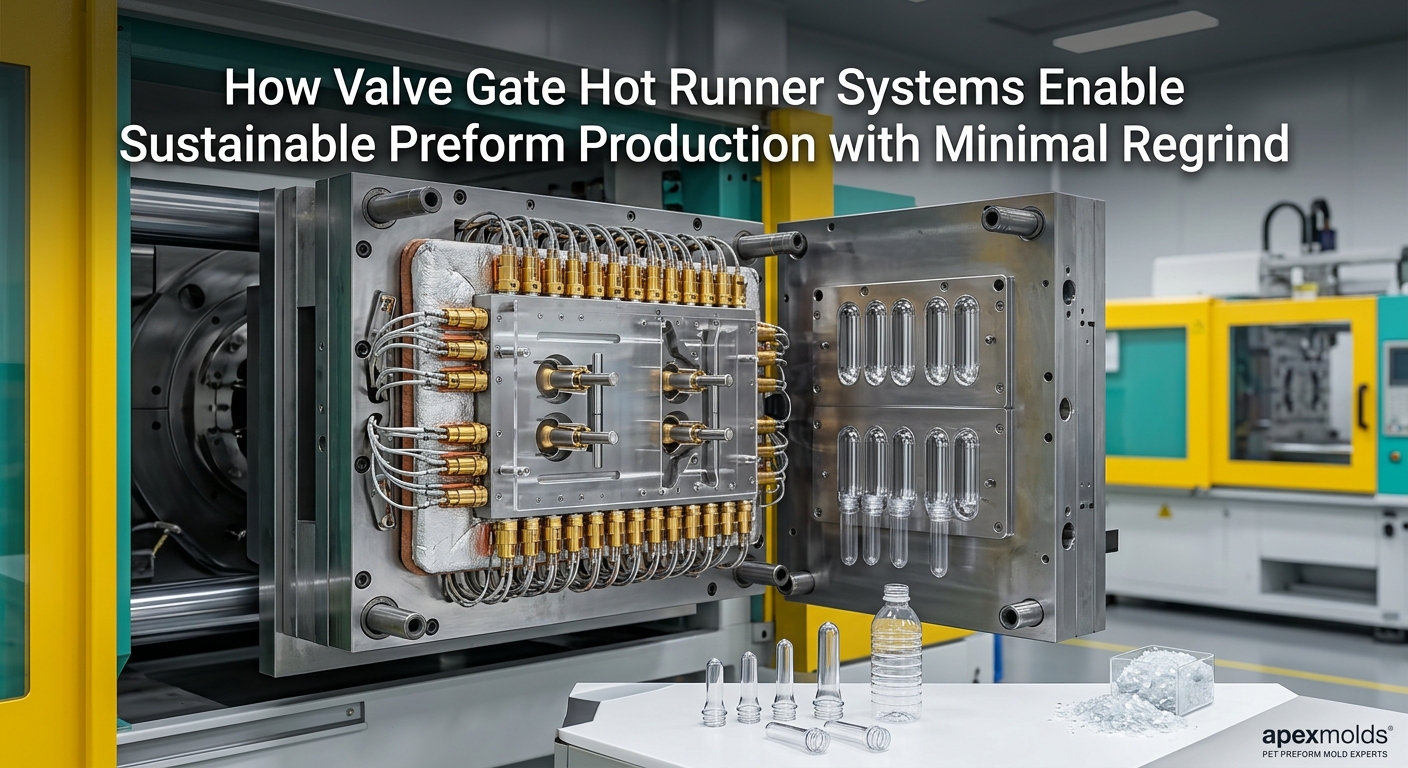

How Valve Gate Hot Runner Systems Enable Sustainable Preform Production with Minimal Regrind
In high-speed PET preform manufacturing, driving sustainability is no longer just about resin formulation—it begins with zero-waste mold architecture. Traditional cold runner or sub-optimal hot runner systems generate substantial scrap material, long sprue stems, and gate vestige, forcing packaging converters to rely heavily on resin regrind. Re-processing regrind degrades intrinsic viscosity (IV), increases thermal degradation, and introduces volatile contaminants into the melt stream.
At ApexMolds, we address material waste and thermal instability at the source. By integrating pneumatic multi-zone valve gate hot runner systems into our high-density PET preform molds, we enable packaging manufacturers to achieve seamless, sustainable production with virtually zero scrap and minimal regrind reliance. This technical whitepaper explores the engineering principles behind valve gate hot runner technology and its impact on sustainable preform molding.
1. The Mechanical & Thermal Advantage: Valve Gate vs. Standard Runner Systems
Unlike thermal sprue or open-nozzle systems that rely solely on thermal freezing to shut off plastic flow, a valve gate hot runner employs mechanically actuated shut-off pins. Driven by individual or synchronized pneumatic cylinders, these pins physically close the gate orifice prior to mold opening.
Operational and Environmental Drawbacks of High-Regrind Ratios:
- Thermal Degradation & IV Loss: PET resin subjected to repeated thermal cycles exhibits reduced molecular weight, causing preform stress cracking and lowered top-load strength during blow molding.
- Acetaldehyde (AA) Spike: Excessive shear and re-melting of regrind elevates AA levels, compromising taste and odor standards for bottled water and beverage applications.
- Dust and Fine Contamination: Granulating sprues and defective preforms produces micro-dust that fouls injection screws, causing yellowing and black spots.
2. ApexMolds Hot Runner Innovations for Minimal Regrind Production
To eliminate gate tailing and maintain pristine resin stability across high-cavity layouts (such as 48-cavity, 72-cavity, and 96-cavity molds), ApexMolds designs customized valve gate hot runners optimized for thermal equilibrium and low shear stress.
| Engineering Metric | Standard Hot Runner / Open Gate Tooling | ApexMolds Valve Gate Hot Runner System | Sustainability & Efficiency Gain |
|---|---|---|---|
| Gate Quality & Vestige | Noticeable gate nub / stringing (requires trimming) | Flush-cut, zero-vestige gate (< 0.1mm stem) | Eliminates manual trimming & scrap generation |
| Scrap & Regrind Ratio | Up to 3% to 5% material loss per cycle | Near-zero sprue waste (< 0.2% scrap rate) | Saves metric tons of resin annually |
| Shear Stress & Melt Flow | High shear at narrow thermal gate tips | Optimized flow channels with pneumatic pin guidance | Preserves intrinsic viscosity (IV) and prevents AA spike |
| Thermal Uniformity | ±3°C variance across manifold zones | Independent PID closed-loop control (±0.5°C) | Ensures 100% cavity filling uniformity |
Key Hardware Features Engineered by ApexMolds:
- Individual Pneumatic Valve Pin Actuation: Provides millisecond-precise timing for gate opening and closing, preventing gate crystallization and stringing even under rapid cycle speeds.
- Hardened Swedish Tool Steel Components: Nozzles and valve pins are precision-ground and coated with titanium carbonitride (TiCN) to resist wear when processing virgin PET or high-percentage rPET blends.
- Naturally Balanced Internal Melt Channels: Melt pathways are geometrically engineered to maintain equal residence time and equal shear rate across every cavity, eliminating localized thermal hot spots.
3. Sustainable Impact and Economic Return on Investment (ROI)
Transitioning to an ApexMolds valve gate preform system directly impacts both environmental footprint and long-term operating costs:
- Material Savings: Eliminating cold sprues and long gate tails saves tens of thousands of dollars in raw material costs annually on continuous production lines.
- Energy Consumption Reduction: Cutting out the regrind process reduces electricity usage associated with auxiliary granulators, dust collectors, and re-drying equipment.
- Flawless Blow Molding Uptime: Smooth, flat preform gates ensure precise preform seating and stretching in blow molding machines, eliminating base puncture and burst defects.
Conclusion: Drive Zero-Waste Molding with ApexMolds
Combining valve gate hot runner technology with high-precision preform mold engineering is essential for beverage packaging manufacturers seeking to meet strict corporate sustainability goals. ApexMolds delivers complete, high-efficiency preform tooling solutions engineered to eliminate scrap, preserve resin integrity, and maximize continuous uptime.
Ready to eliminate preform scrap and upgrade your production lines to sustainable valve gate tooling? Contact the engineering experts at ApexMolds today for custom quotes and mold redesign consultations.
