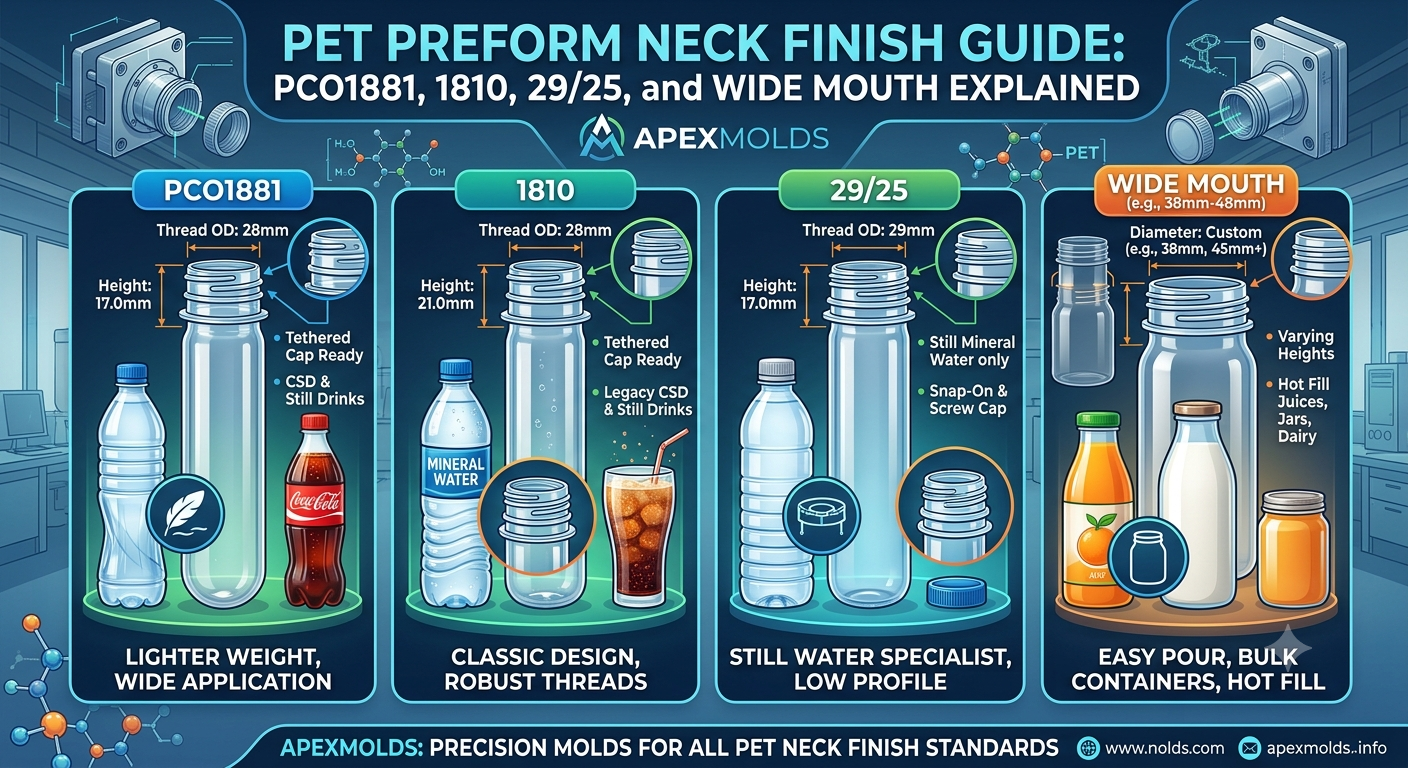

PET Preform Neck Finish Guide: PCO1881, 1810, 29/25, and Wide Mouth Explained
In rigid plastic packaging manufacturing, the neck finish of a PET preform is far more than a simple threaded opening. It serves as the mechanical interface for cap seal integrity, internal pressure resistance, automated high-speed capping lines, and material cost reduction. Selecting the optimal neck finish standard is one of the most critical decisions beverage producers and bottle converters make when investing in new PET preform tooling.
With global sustainability initiatives driving resin light-weighting and tethered cap mandates across major markets, understanding the technical differences between PCO 1881, PCO 1810, 29/25, 30/25, and Wide Mouth standards is vital. As an international leader in high-precision PET preform mold engineering, Apexmolds breaks down the structural design, application scope, and mold manufacturing considerations for each major neck finish specification.
Key Engineering Insight: Transitioning from a classic PCO 1810 to a modern PCO 1881 standard saves approximately 1.3 grams of PET resin per preform. On a production line manufacturing 50 million bottles annually, this single neck finish shift yields over $65,000 in direct resin savings while reducing carbon footprint.
1. Comparison Matrix: Standard PET Preform Neck Profiles
To help packaging engineers and procurement directors evaluate choices quickly, the following matrix summarizes the fundamental parameters across widely used neck finish standards:
| Neck Standard | Nominal Diameter | Average Neck Weight | Target Applications | Primary Advantage |
|---|---|---|---|---|
| PCO 1810 | 28 mm | ~5.05 g | Legacy CSD (Carbonated), Mineral Water | High thread contact area; extreme torque stability |
| PCO 1881 | 28 mm | ~3.74 g | Carbonated Soft Drinks, Sparkling Water | Industry standard short-neck; high pressure retention |
| 29/25 (1262) | 29 mm | ~2.15 g – 2.60 g | Still Water, Non-Carbonated Drinks | Ultra light-weighting; maximized resin savings |
| 30/25 (1847) | 30 mm | ~2.30 g – 2.80 g | Mineral Water, Functional Beverages | Ergonomic grip; optimized seal for still liquids |
| 38 mm (3-Start) | 38 mm | ~5.50 g – 7.20 g | Dairy, Juices, Sports Drinks, RTD Tea | Wide flow rate for rapid drinking & clean pour |
| Wide Mouth (>45mm) | 45 mm – 120 mm | 12.0 g – 45.0 g+ | Confectionery, Candy Jars, Food Powders | Easy scoop access; wide filling mouth |
2. Technical Deep-Dive into Key Neck Finish Standards
1) PCO 1810 vs. PCO 1881: The Carbonated Soft Drink (CSD) Standard Evolution
PCO (Plastic Closure Only) standards dominate the 28mm carbonated beverage segment. For decades, PCO 1810 was the worldwide benchmark, recognized by its tall 21.0mm profile and robust thread depth capable of handling high gas volumes (up to 4.5 volumes CO2).
However, PCO 1881 revolutionized the industry by shortening the neck height to 17.0mm while retaining the 28mm thread diameter. By optimizing the locking ring and thread profile, PCO 1881 reduces neck weight by over 25% without sacrificing pressure retention or cap seal reliability. At Apexmolds, our PCO 1881 preform molds feature high-precision cooling around the neck ring splits to maintain precise thread geometry and prevent heat warp during fast eject cycles.
2) 29/25 and 30/25: Light-Weighting Specialists for Still Water
Unlike carbonated drinks, non-carbonated mineral water does not require massive internal pressure resistance. This led to the development of dedicated short-neck water finishes such as 29/25 and 30/25.
- 29/25 Neck Finish: Widely adopted in European and international markets, achieving neck weights as low as 2.15 grams. It provides an excellent snap-on or screw closure mechanism with minimal plastic consumption.
- 30/25 Neck Finish: Offers a slightly wider mouth opening, providing superior pouring aesthetics and ergonomic closure handling for premium consumer water brands.
3) Wide Mouth Standards (38mm, 48mm, 63mm, and Custom Sizes)
Wide mouth preforms cater to fast-filling dairy, hot-fill juices, sports hydration, and food storage jars. High-speed liquid filling lines demand larger diameters (such as 38mm 3-start rapid threads) to allow rapid gulping and high volumetric flow rates without splashing.
3. Mold Engineering Challenges for Specific Neck Finishes
Manufacturing preforms across different neck finishes demands specialized mold tooling expertise. Apexmolds integrates several engineered design elements to ensure flawless neck profile execution:
A. Neck Ring Material & Heat Transfer Management
The neck ring area undergoes constant mechanical split action during mold opening. Apexmolds utilizes premium S136 stainless steel or pre-hardened custom alloys with dedicated cooling channels built directly inside the neck ring inserts. Rapid chilling in the neck finish prevents thermal deformation, thread distortion, and flash generation.
B. Multi-Start Thread Precision Machining
For wide-mouth and multi-start designs (e.g., 38mm 3-start closures), misaligned thread split lines lead to capping leaks and torque failure. Apexmolds utilizes 5-axis high-speed CNC engraving and optical measurement to guarantee seam line transitions under ≤ 0.02mm.
C. Adaptability for Tethered Cap Regulations
With modern environmental mandates requiring caps to remain attached to bottles, neck profiles must feature revised retaining bead geometries. Apexmolds engineers custom neck ring splits that seamlessly accommodate tethered cap locking rings while maintaining compatibility with standard stretch blow molding (SBM) machinery.
4. Partner with Apexmolds: Your Preform Tooling & Neck Design Expert
Choosing the correct PET preform neck finish requires balancing resin efficiency, capping performance, filling speeds, and long-term tooling durability. Apexmolds provides complete preform engineering support, including:
- Custom preform lightweighting redesign and neck transition consultation.
- Convertible neck ring mold designs for rapid switching between neck finish standards.
- High-cavity PET preform molds (8 to 144 cavities) engineered with precision valve-gate hot runners.
- Global technical support, mold flow analysis (MFA), and rapid prototype sampling.
